Feature:
Amount of standby time exceeding 10 hours! Small size, one-handed operation (moving observation), easy to carry.
Support WIFI image transmission, and real-time mobile APP browsing, recording, photographing, and playback;
Support photographing and video, Protection level IP66, 1-meter drop resistance;
Built-in multiple infrared color codes and cross cursor and laser red dot indicator for target aim;
Picture in Picture function for details viewing without missing large field of view

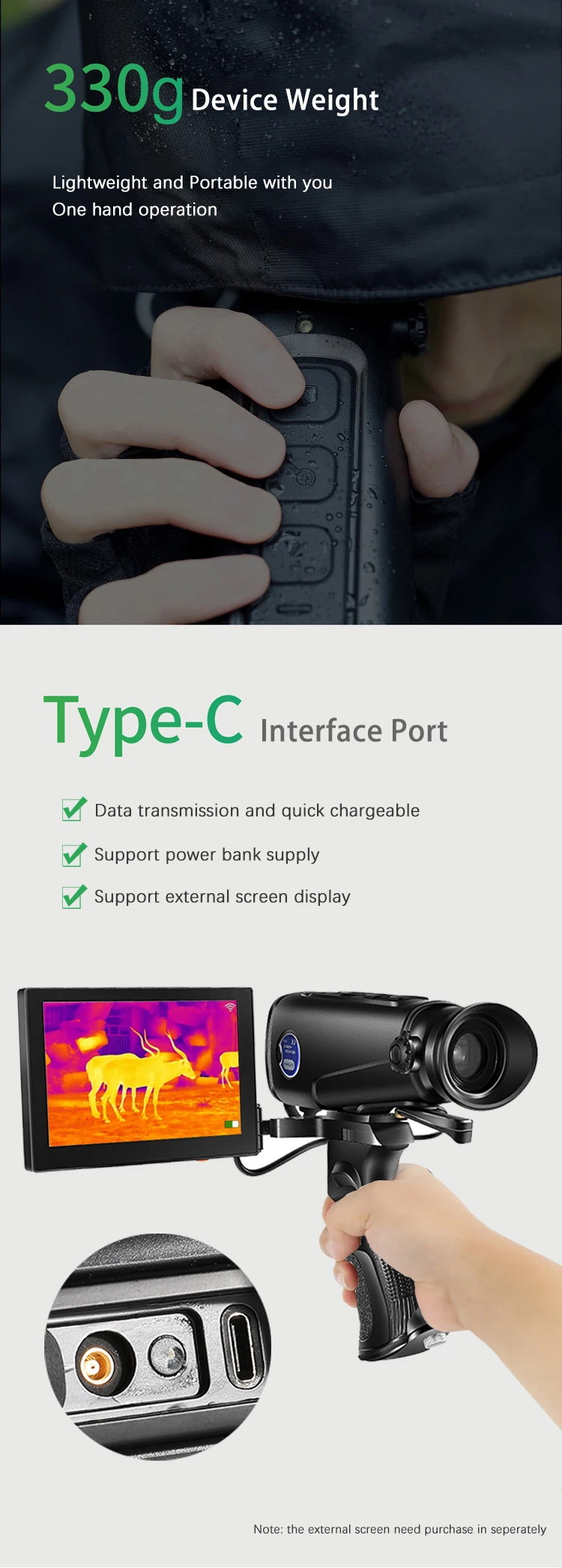

Type-C fast charging and external handheld screen real time video output
Hotspot Tracking let searching more easy

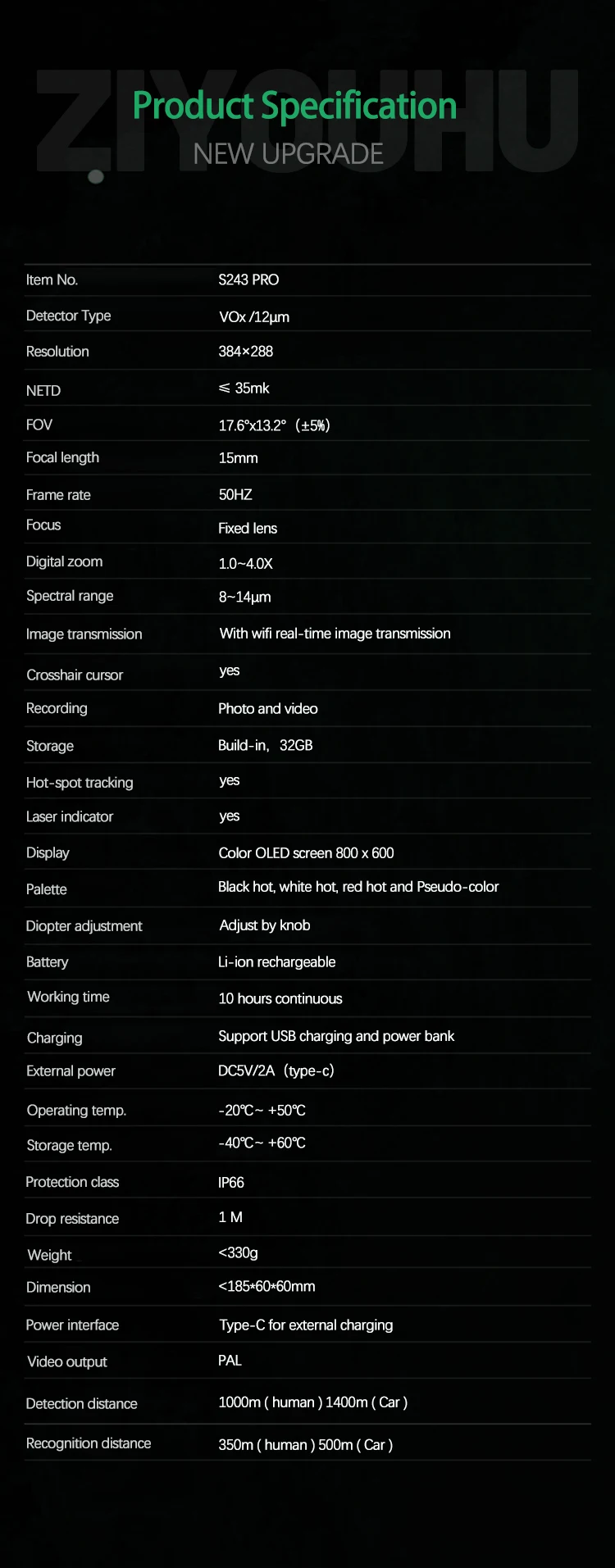

| Item | S243 PRO |
| Detector | |
| Type | VOx /12μm |
| Resolution | 384×288 |
| NETD | ≤ 35mk |
| Image | |
| FOV | 17.6°x13.2°（±5%） |
| Focal length | 15mm |

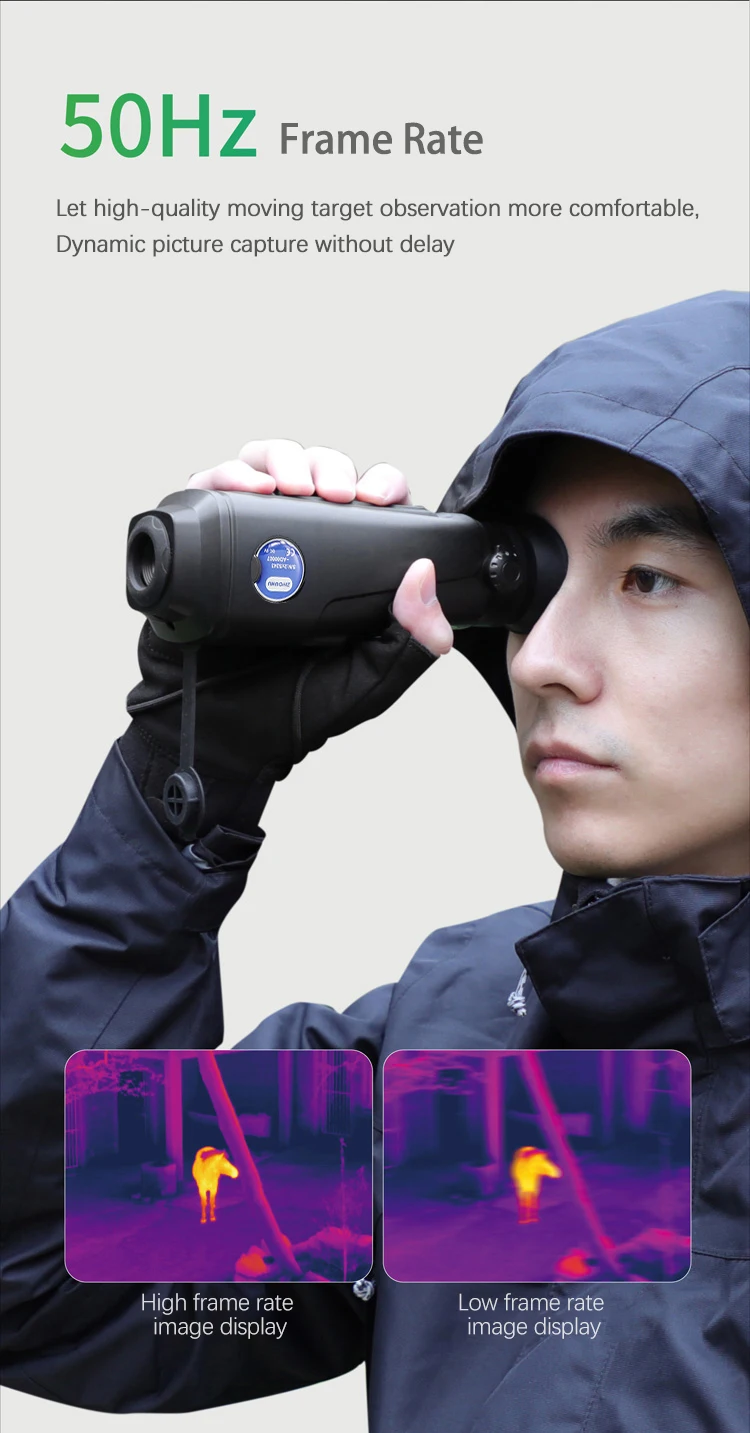

| Frame rate | 50HZ |
| Focus | Fixed lens |
| Digital zoom | 1.0~4.0X |
| Spectral range | 8~14μm |
| Image transmission | With wifi real-time image transmission |
| Crosshair cursor | yes |
| Recording | Photo and video |

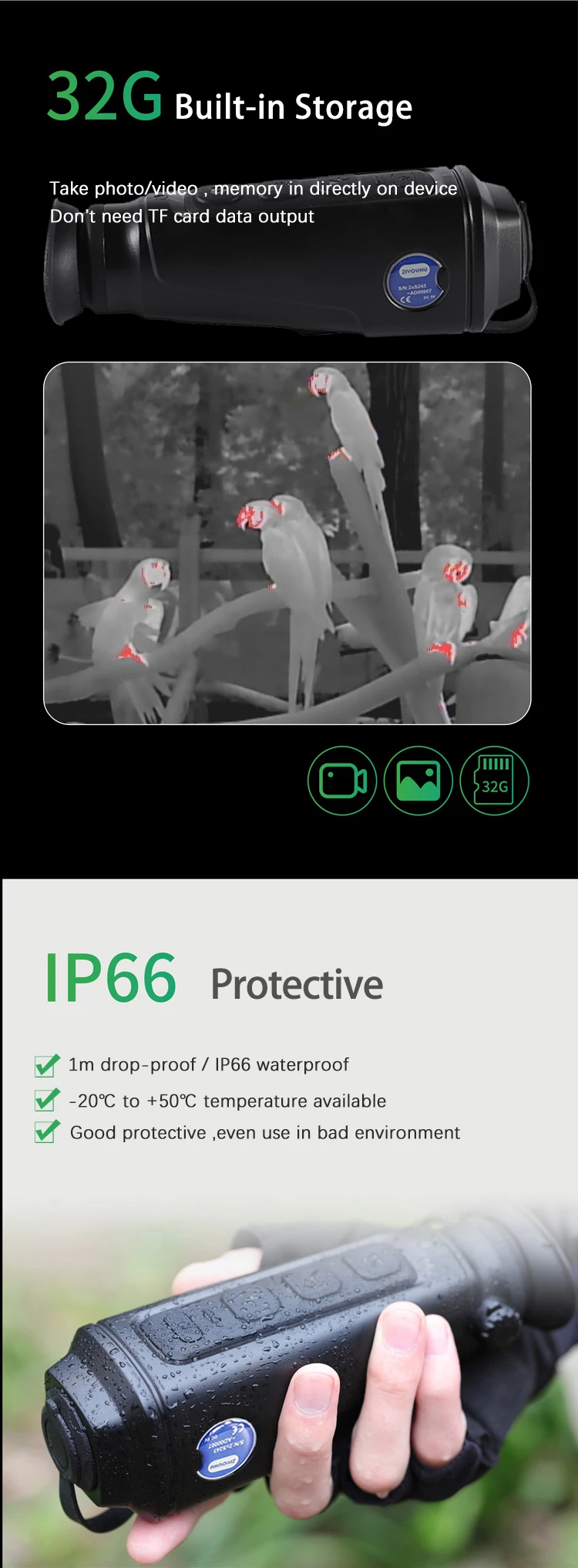

| Storage | Build-in，32GB |
| Hot-spot tracking | yes |
| Laser indicator | yes |
| Display | |
| Display | Color screen 800 x 600 |

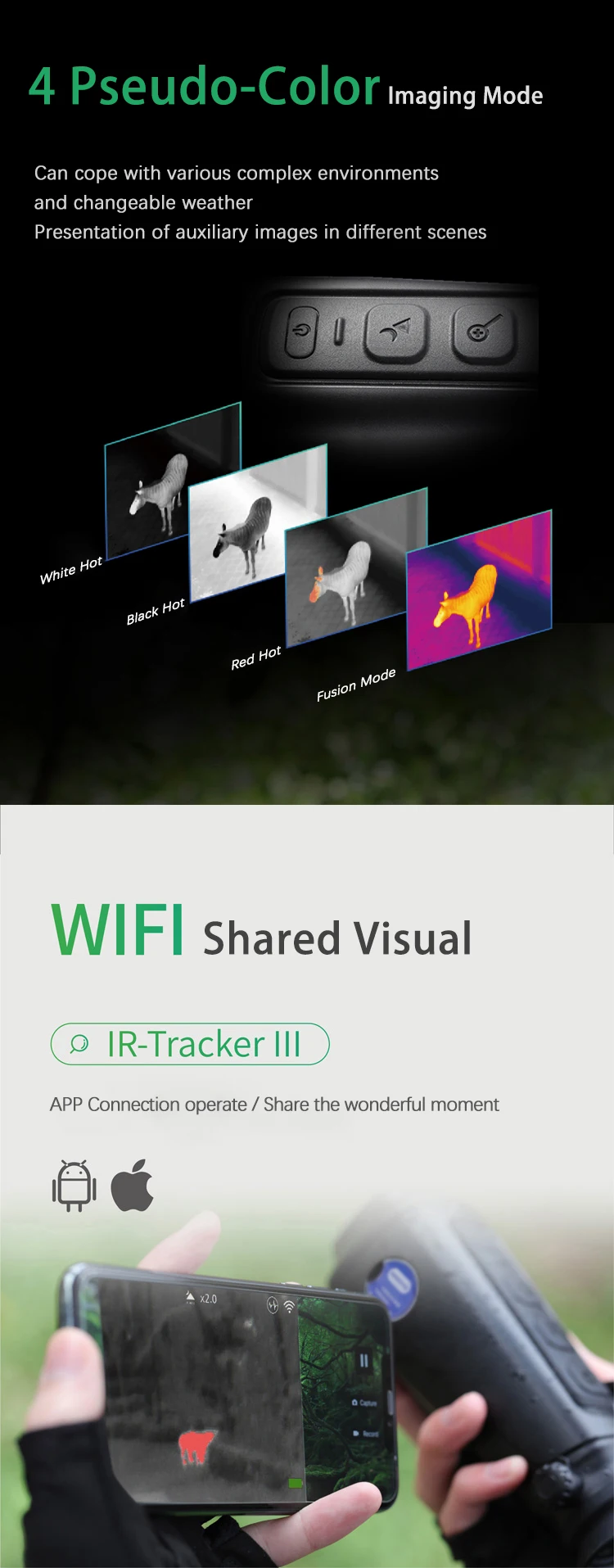

| Palette | Black hot, white hot, red hot and Pseudo-color |
| Diopter adjustment | Adjust by knob |
| Power | |
| Battery | Li-ion rechargeable |
| Working time | 10 hours continuous |
| Charging | Support USB charging and power bank |
| External power | DC5V/2A（type-c） |
| Environment | |
| Operating temp. | -20℃~ +50℃ |
| Storage temp. | -40℃~ +60℃ |
| Protection class | IP66 |
| Drop resistance | 1 M |
| Physical | |
| Weight | <330g |
| Dimension | <185*60*60mm |
| Interface | |
| Power interface | Type-C for external charging |
| Video output | PAL |

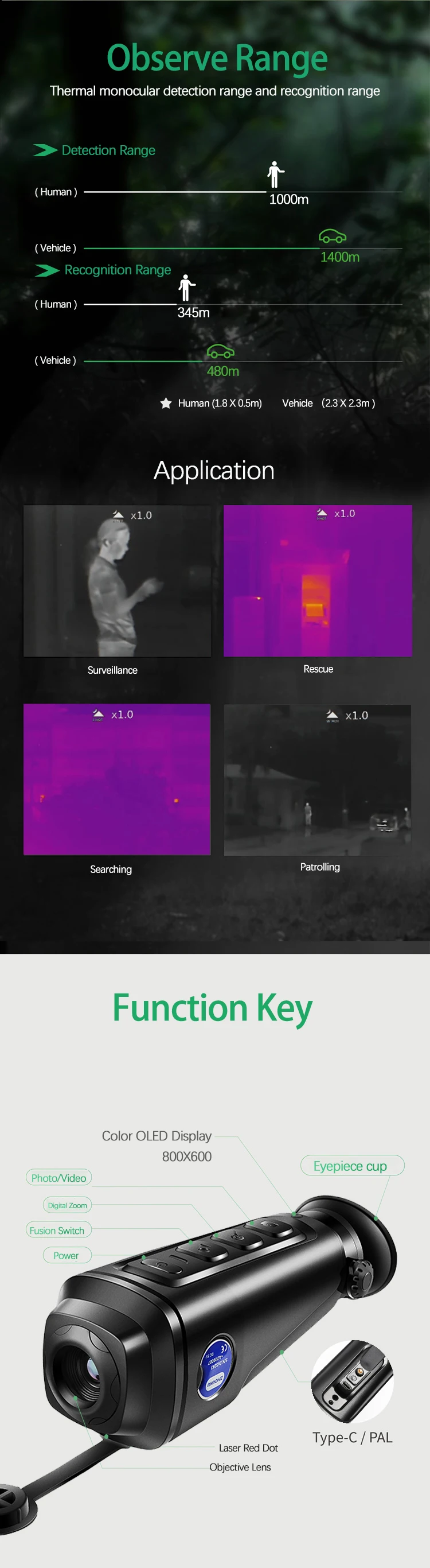

| Detection distance | |
| Human（1.8×0.5）m | 1000m |
| Car（2.3×2.3）m | 1400m |
| Recognition distance | |
| Human（1.8×0.5）m | 350m |
| Car（2.3×2.3）m | 500m |
About this item
- Easy to Use-S243prothermal imager has only four buttons and an intuitive interface, super easy for one-handed operation, even can be installed on the mount to free your hands
- Thermal Scope-1400Mdetection range and 384×288 thermal resolution, 4x digital zoom and 4 different thermal color palette options improve identification
- Thermal Imaging Camera-800X600 OLEDresolution display. The infrared camera is equipped with a Wi-Fi hotspot and 32GB card, provides you a live video feed, video recording and snapshot capturing
- Rechargeable-Built-in a lithium-ion battery, supports10 hours of work. And the thermal goggle can be charged via an adapter or power bank through USB-C
- Reliable Vision-The handheld thermal monocular shows people and animals through infrared ray in 100% dark or glaring light. Perfect for outdoor, exploration, surveillance, rescue, security, hunting, hiking,etc.
S243PRO SPECIFICATIONS
Resolution:384×288
Display:800X600 OLED （Eyepiece diopter adjustable）
Refresh Rate:50Hz
FOV(H×V):17.6°*13.2°（±5%）
Detection Range:1400m(Vehicle),1000m(Human)
Recognazition Range : 480m(Vehicle) , 345m(Human)
Lens(Focal Length):15mm
Response Waveband:8~14um
NETD:≤35mk@25℃
Digital Zoom:1X-4X
Battery Life:10-hour,Rechargeable
External Power:DC 5V/2A(Type-C USB)
Thermal Palette:Black hot,White hot,Red hot,Fusion
Hot Spot Tracking:Yes
Adjustable Diopter:Yes
Cross Hair:Yes
Wi-FI Hotspot:Yes
Operation Temp:-20℃~+50℃
IP Level:IP66
Weight:≤330g
Size:<7.3×2.4×2.4 inches≤185*60*60mm

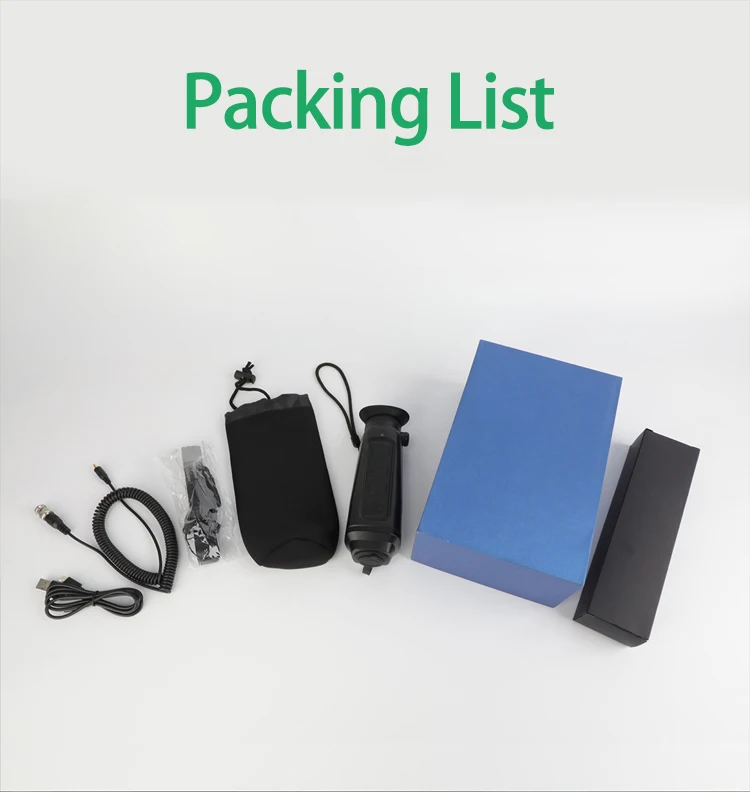

In The Box:Handheld Thermal Camera,Type-C USB Cable,Video Data Cable,Lanyard
